Battery connectors serve as crucial components in powering an array of devices, ranging from portable electronics to electric vehicles. The selection of an appropriate battery connector is paramount for establishing a secure and efficient electrical connection. In this comprehensive guide, we delve into the fascinating realm of battery connectors, showcasing their versatility and diverse range of applications. Brace yourself for a captivating exploration of the intricacies of these essential connectors.

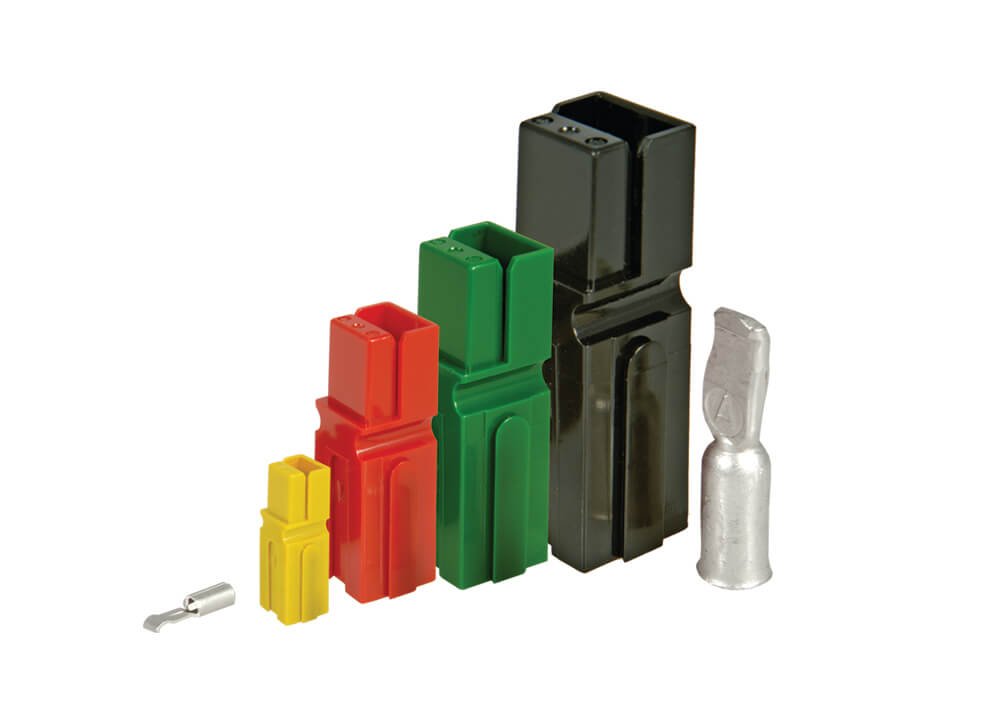

Anderson Powerpole Connectors: Embracing Efficiency and Versatility
With their genderless design, Anderson Powerpole connectors excel in high-current applications, allowing for quick and hassle-free assembly.
Boasting low resistance, these connectors have found widespread usage in amateur radio, robotics, automotive applications, and more.
Noteworthy Applications: Battery packs, electric vehicles, solar power systems, RC hobby projects.

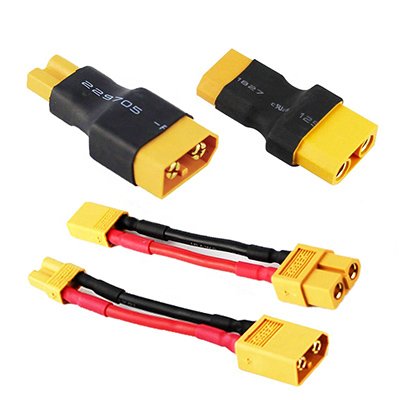

XT60 Connectors: Powering the Skies and Beyond
Characterized by their bullet-style connectors and polarized design, XT60 connectors offer ease of soldering and assembly.
Trusted by the drone and RC community, these connectors are renowned for their high current handling capacity and affordability.
Noteworthy Applications: Drones, RC vehicles, battery-powered tools, small electronic projects.
Deans Ultra Plug (T-Connector): Precision and Reliability
Deans Ultra Plug connectors, with their compact size and secure, low-resistance soldered connection, are favored in the realm of RC vehicles and aircraft.
These connectors boast high current capacity and steadfast reliability, making them a go-to choice for high-performance battery-powered devices.
Noteworthy Applications: RC cars, planes, helicopters, high-performance battery-powered devices.

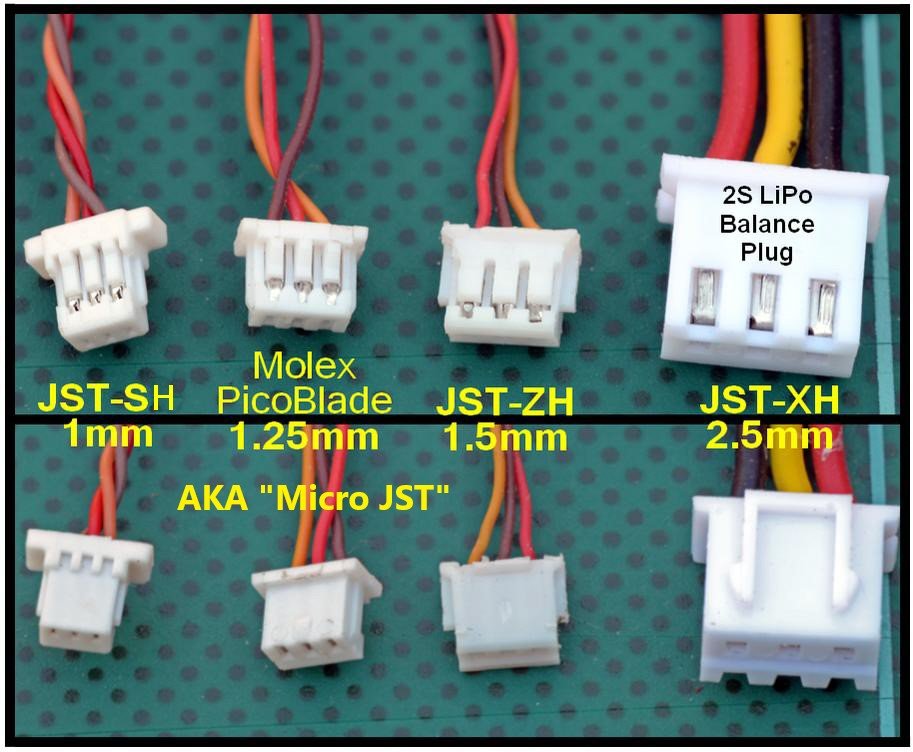

JST Connectors: Compact Solutions for Low-Power Applications
JST connectors, known for their small form factor and polarized design, provide flexible crimp or solder connections.
Despite their compact size, these connectors offer reliability and are commonly employed in low-power applications.
Noteworthy Applications: Consumer electronics, digital cameras, remote-controlled toys, small-scale robotics.

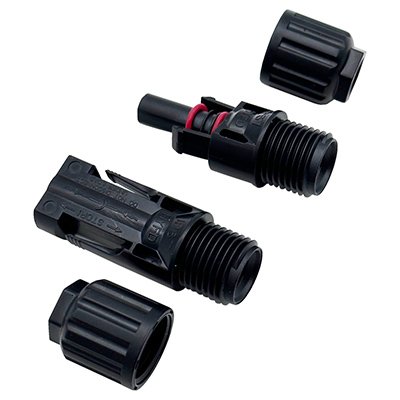

Engineered for solar panel installations, MC4 connectors feature a waterproof, snap-together design.
These connectors shine in high-current environments and exhibit exceptional weather resistance, ensuring safe and reliable connections.
Noteworthy Applications: Solar power systems, off-grid applications, renewable energy projects.

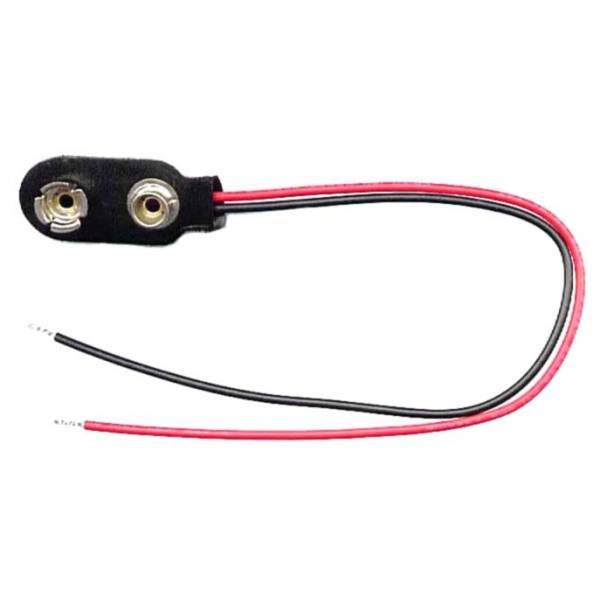

Battery Snap Connectors: Simplicity and Accessibility
Battery snap connectors, with their straightforward snap-on connection design, are easy to use and widely available.
Found in countless battery-powered devices, these connectors offer an affordable and efficient power connection solution.
Noteworthy Applications: Toys, flashlights, small appliances, DIY electronics.

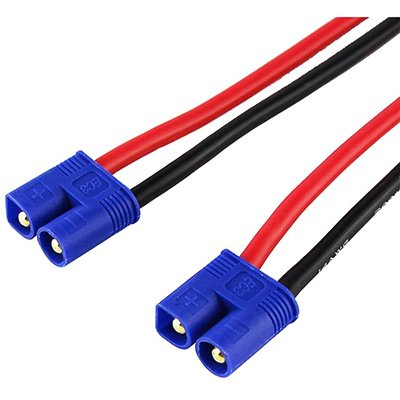

EC3 Connectors: Powering the Thrill of RC
Featuring banana-style connectors and a compact size, EC3 connectors facilitate either soldered or crimped connections.
Widely embraced in the RC community, these connectors deliver high current capacity for a thrilling RC experience.
Noteworthy Applications: RC cars, planes, helicopters, high-power battery applications.

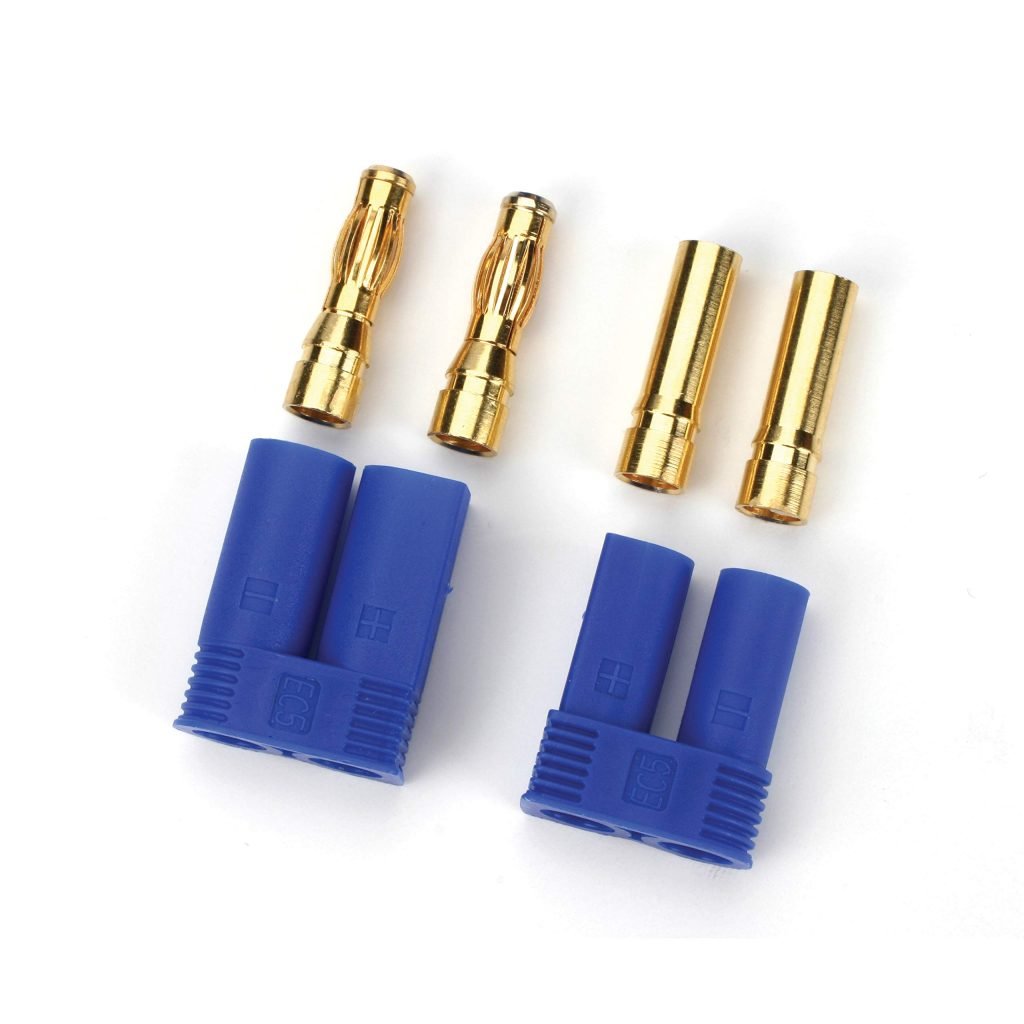

EC5 Connectors: Unleashing Power and Performance
Building upon the success of EC3 connectors, EC5 connectors offer an enlarged form factor and enhanced high current capacity.
These connectors find their place in electric vehicles, high-power RC models, and various battery-powered industrial equipment.
Noteworthy Applications: Electric vehicles, high-power RC models, battery-powered industrial equipment.

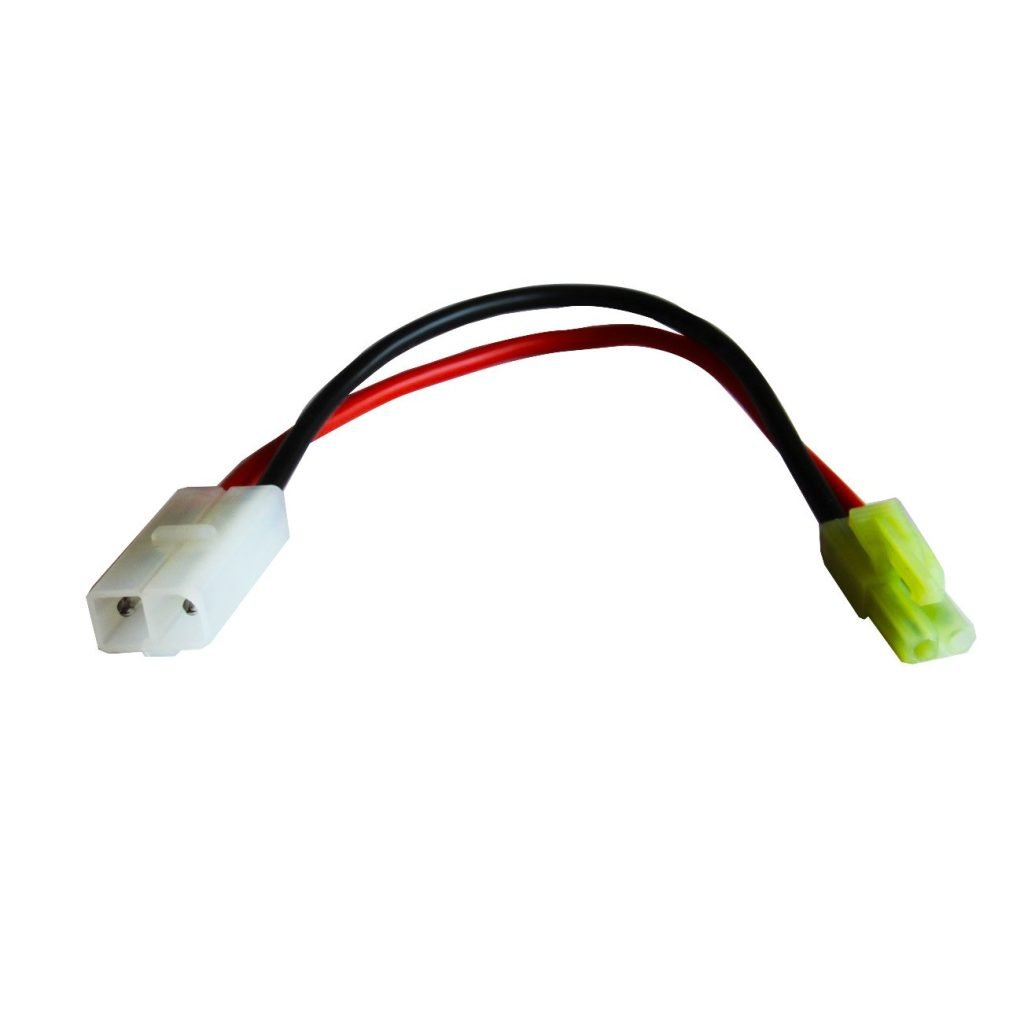

Mini Tamiya Connectors: Powering Hobbies with Precision
Mini Tamiya connectors, featuring a small form factor and polarized design, are prevalent in airsoft guns and RC vehicles.
Renowned for their secure connection, availability, and affordability, these connectors meet the needs of hobbyists and enthusiasts.
Noteworthy Applications: Airsoft guns, RC cars, small-scale robotics, hobbyist projects.
XT30 Connectors: Compact and Capable
XT30 connectors, with their compact size and polarized design, support either soldered or crimped connections.
Commonly employed in drones and small electronic devices, these connectors offer high current handling capabilities.
Noteworthy Applications: Drones, small electronic projects, battery-powered tools.
Conclusion:
Battery connectors encompass a vast and diverse landscape, each with its unique features, advantages, and applications. From the efficiency and versatility of Anderson Powerpole connectors to the compact precision of Mini Tamiya connectors, these connectors play a vital role in powering our devices. By understanding the intricacies and applications of these battery connectors, you can make informed decisions, ensuring reliable and efficient power connections for your diverse projects. Embrace the world of battery connectors and unlock the potential to power your imagination.
