12V 80Ah Battery
Are you looking for a lightweight battery to power your 12V electronics or trolling motor? Look no further, because this is it!
12V 80Ah LiFePo4 Battery
- Rated Voltage(V): 12.8
- Rated Capacity(Ah): 80
- Rated power(Wh): 1024
- Max charge voltage(V): 14.6
- Max charge current: 80A
- Max contine current: 80A
- Peak discharge current(≦10S): 160A
- Specs(±2mm): 260*168*210mm
- Cycle: >6000
PPGlob is tailored for 12V applications, offering efficient operation.
Compact in size, this battery ensures minimal footprint.
Constructed with 4 LiFePO4 cells, it integrates PCM for optimal cell balance and protection.
Equipped with a built-in BMS, it ensures safety and longevity.
Compatible with 12V lead-acid batteries, offering versatility.
Utilize lead acid battery chargers hassle-free.
Suitable for parallel or series connection, catering to 24V, 36V, and 48V appliances.
| Work Voltage Range: | 10.8~14.6V | Nominal Voltage: | 12.8V |
|---|---|---|---|
| Nominal Capacity: | 80Ah | Min Capacity: | ≥79Ah |
| Rated Energy: | 1024Wh | Maximum continuous discharge power: | 1024W |
| Fast Charging Voltage: | 14.6±0.2V | Float Charging Voltage: | 13.5~13.8V |
| Low discharge protection voltage: | 9.6~10.8V | Standard charging current: | 16A |
| Recommended charging current: | ≤40A | Max charging current: | 80A |
| Standard discharge current: | 16A | Recommended discharging current: | ≤80A |
| Max continue discharge current: | 80A | Peak discharge current: | 160A (10 seconds) |
| Resistance: | ≤12mΩ | Charge temperature: | 0~55℃ |
| Discharge temperature: | -20~60℃ | Cycle(25℃, 0.5C, 80% DOD) | >6000 |
| Battery cell combination: | 4S1P | Waterproof Level: | IP65 |

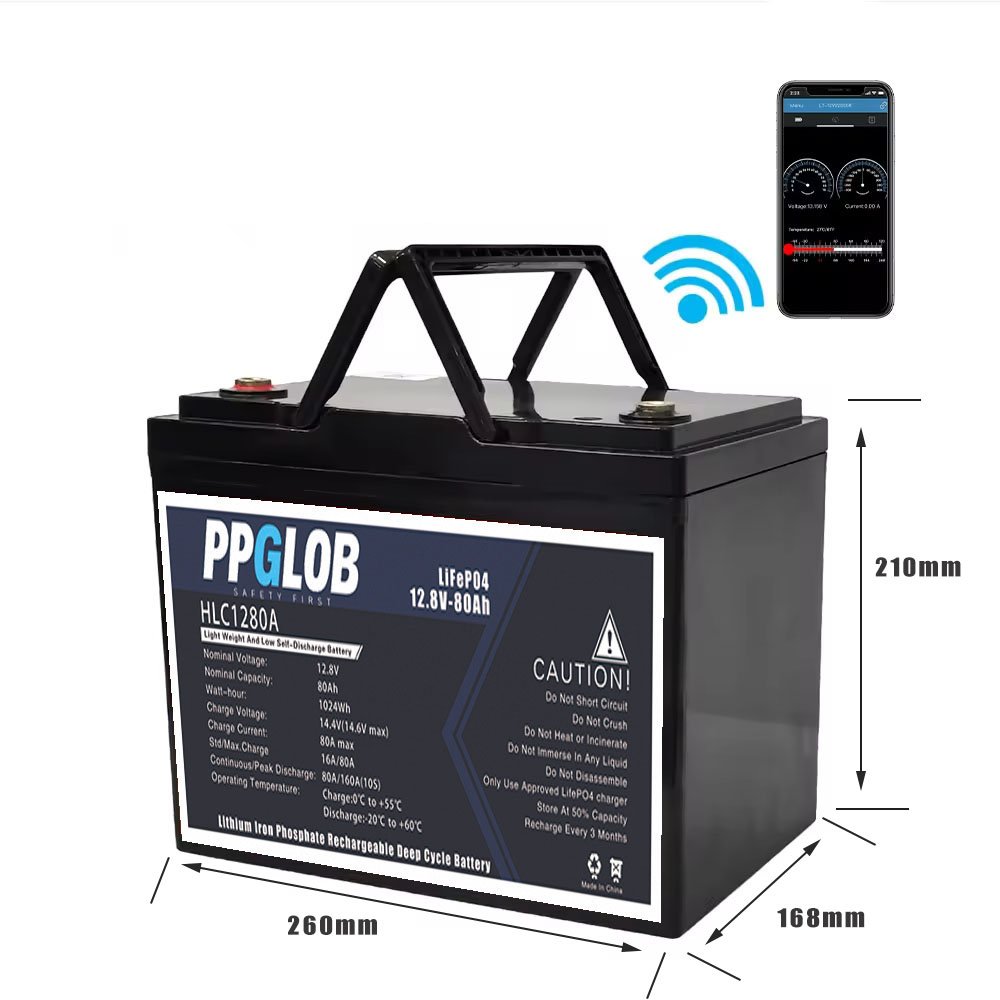

| Weight: | 9.5Kg | 12.8V 80Ah battery size: | 260*168*210mm |
Application for 12v 80ah lithium battery
Suitable for a variety of uses including marine, RV, campers, golf cart, off-road and off-grid applications!
However, it is not advised for engine start applications. Parallel wiring is permissible for connecting up to four batteries, as is series wiring for the same number of batteries.
Features for 12V 80Ah rechargeable battery
Utilizing Lithium Iron Phosphate (LiFePO4) tech with Bluetooth monitoring via our app, this battery offers double the power, minimal weight, and quadruple the lifespan of sealed lead acid. Simple installation: connect main positive and negative to trolling motor. Plug and play simplicity! Up to 4 batteries can be series-wired for 24V/36V trolling motors or 48V systems. Compatible with various AGM chargers including Minn Kota, Dual Pro, Noco, Real Pro, and Pro Sport.
