12V 36Ah LiFePo4 Battery
PPGlob 12V 36Ah high current waterproof marine lifepoo4 battery
12V 36Ah Deep Cycle Battery
- Rated Voltage(V): 12.8
- Rated Capacity(Ah): 36
- Rated power(Wh): 460.8
- Max charge voltage(V): 14.6
- Max charge current: 36A
- Max contine current: 36A
- Peak discharge current(≦10S): 80A

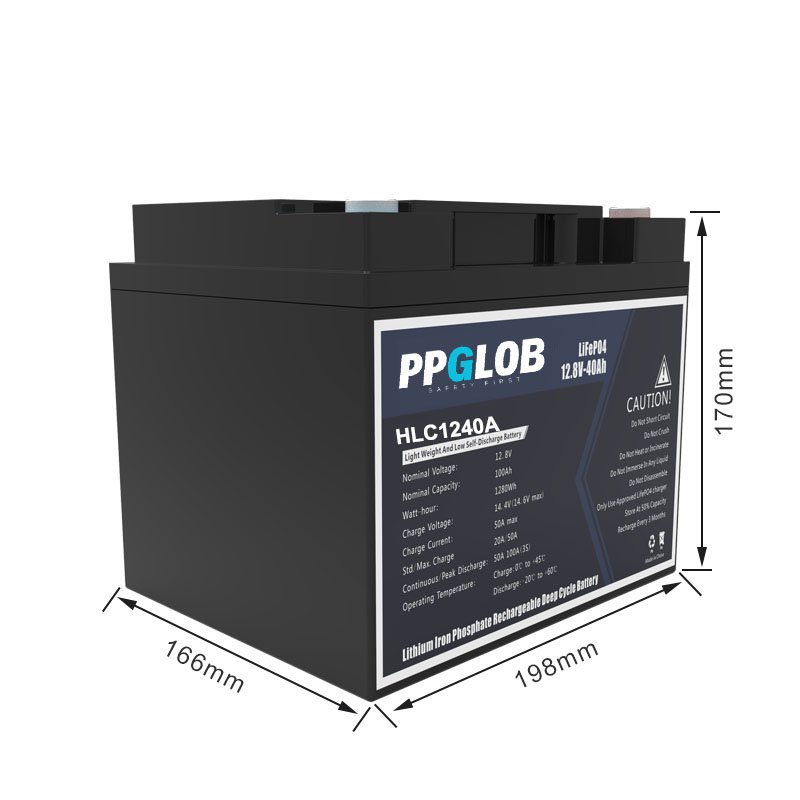

- Specs(±2mm): 198*166*170mm
- Cycle: >6000
The PPGlob 12V deep cycle battery modules for RVs are equipped with premium cells, components, and a customized Battery Management System (BMS), offering numerous advantages:
- Utilization of high-performance, long-lasting, and safe LFP (Lithium Iron Phosphate) single cells with a wide temperature range.
- Compact size and lightweight design, with high energy density and no environmental pollution.
- Efficient charging capabilities with high-speed charging functionality.
- Integrated BMS ensuring protection against voltage fluctuations, current surges, and temperature variations.
- Standardized battery casing facilitates easy replacement for VRLA (Valve-Regulated Lead-Acid) batteries.
- Designed for a 10-year lifespan, delivering stable performance without the need for maintenance.
Recommended Charging Options:
- Utilize either a PPGlob AGM Charger* or a LiFePO4 Smart & Microprocessor-controlled charger meeting the specified requirements.
- For vehicle or marine applications, ensure the alternator output is below 15V.
- For solar applications, employ a compatible Lithium Charge Controller.
- Maximize charging current only when necessary for rapid charging, avoiding prolonged use at maximum rates.
| Work Voltage Range: | 10.8~14.6V | Nominal Voltage: | 12.8V |
|---|---|---|---|
| Nominal Capacity: | 36Ah | Min Capacity: | ≥35Ah |
| Rated Energy: | 460.8Wh | Maximum continuous discharge power: | 460.8W |
| Fast Charging Voltage: | 14.6±0.2V | Float Charging Voltage: | 13.5~13.8V |
| Low discharge protection voltage: | 9.6~10.8V | Standard charging current: | 7A |
| Recommended charging current: | ≤18A | Max charging current: | 36A |
| Standard discharge current: | 7A | Recommended discharging current: | ≤36 |
| Max continue discharge current: | 40A | Peak discharge current: | 80A (10 seconds) |
| Resistance: | ≤25mΩ | Charge temperature: | 0~55℃ |
| Discharge temperature: | -20~60℃ | Cycle(25℃, 0.5C, 80% DOD) | >6000 |
| Battery cell combination: | 4S1P | Waterproof Level: | IP65 |
| Weight: | 4.2Kg | 12.8V 36Ah battery size: | 198*166*170mm |
Application for 12V 36Ah Lifepo4 Battery
Suitable for a variety of uses including trolling motors, solar power backup, UPS, portable devices, medical carts, camping equipment, trailers, boats, and various deep cycle applications. However, it is not advised for engine start applications. Parallel wiring is permissible for connecting up to four batteries, as is series wiring for the same number of batteries.
FAQ
Frequently Ask Questions
The mostly asked questions about 12v marine deep cycle battery.
A 36Ah battery's runtime depends on the device's power draw. For a 10W device, it'll run 4 hours. Consumption rate matters.
The price is different from different factories. Welcome to send an inquiry to best prices.
Lithium iron phosphate (LiFePO4) batteries have a lower risk of catching fire compared to other lithium-ion chemistries due to their stable chemistry and higher thermal stability. However, while the risk is significantly reduced, it's not entirely eliminated.
A 12V AhAH battery delivers 12 volts and has a capacity of 36 ampere-hours, providing 460.8 watt-hours of stored energy.
LiFePO4 batteries typically have a maximum discharge rate of 1C to 3C, meaning a 36Ah battery can discharge 40A to 80A.
Charge a LiFePO4 battery with a compatible charger, ensuring correct polarity and monitoring for overheating. Avoid overcharging and follow manufacturer guidelines.
Get a Quote
Get lifepo4 rechargeable battery 12V 36Ah
It is powerful and long last time compared with lead acid. Before getting them, please try to answer following questions:
- Compatibility: Will your device/system accept LiFePO4 without modifications?
- Charging: Do you have a suitable charger for LiFePO4?
- Discharge Rate: Does the LiFePO4 meet your device's amperage needs?
- Size & Weight: Will the LiFePO4 battery fit physically?
- Lifespan & Cycles: How does its longevity compare to lead acid?
- Temperature Range: Can it operate in your environment's temperatures?
