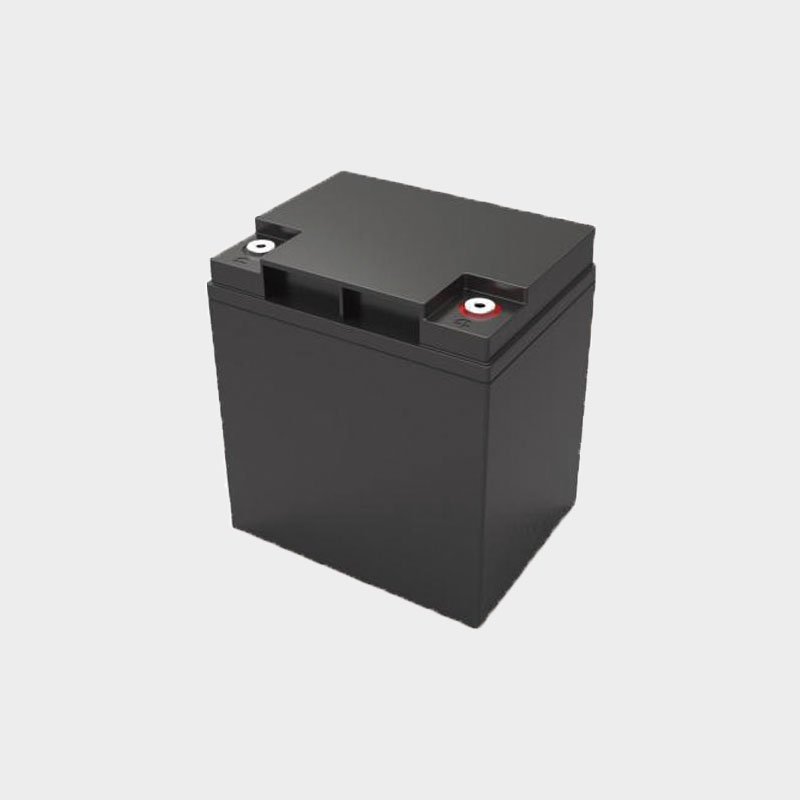

12V 24Ah LiFePO4 Battery Pack
PPGlob 12V 24Ah LiFePO4 battery pack LF1224, 12.8V 288Wh deep cycle rechargeable lithium iron phosphate batteries
12V 24Ah Deep Cycle Battery
- Rated Voltage(V): 12.8
- Rated Capacity(Ah): 24
- Rated power(Wh): 307.2
- Max charge voltage(V): 14.6
- Max charge current: 24A
- Max contine current: 30A
- Peak discharge current(≦10S): 60A
- Specs(±2mm): 165*126*175mm
- Lifespan: >6000
LF1224: A 12V lithium-ion battery pack boasting 6000+ cycles. Compatible with LED strips, cameras, HDTVs, portable TVs, lighting, speakers, pumps, fish finders, and most 12V DC devices.
Energy-packed: 307.2Wh with output voltage ranging from 14.6V to 9V (Nominal: 12.8V). Max output current: 20A. Output voltage typically stays between 12V to 13V for over 90% of a discharge cycle.
Easy fit: Resembles traditional lead-acid batteries in shape and size. Directly replaceable without modifications.
| Nominal Voltage: | 12.8V | Nominal Capacity: | 24Ah |
|---|---|---|---|
| Nominal Energy: | 307.2Wh | Max Charging Voltage: | 14.6V |
| Max Charging Current: | 24A | Float Charging Voltage: | 13.6~13.8V |
| Continue Discharge Current: | 30A max | Peak Discharge Current: | 60A |
| Max Load Power: | 384W | Discharge Cut-off Voltage: | 10.8V |
| Charge Temperature: | 0~+50℃ | Discharge Temperature: | -20~+60℃ |
| Work Humidity: | <95%R.H | Lifespan(25℃, 0.5C, 100% DOD) | >6000 |
| Battery Cell Combination: | 4S | Waterproof Class: | IP65 |
| 12.8V 20Ah Battery Size: | 165*126*175mm | Weight: | 3Kg |
Application for 12v 24ah rechargeable battery
12v 24ah lithium battery is a replacement for lead-acid batteries, which can be used in energy storage and power fields. They are fish finder, lifepo4 battery replace lead acid, electric vehicle, electirc scooter, solar lighting, RV etc.
FAQ
Frequently Ask Questions
The mostly asked questions about 12v 24ah lifepo4 battery
It costs range from $30 to $38 per set.
Its size will be roughly 165*126*175mm.
NMC batteries are known for higher energy density and power output compared to LiFePO4 batteries, making them suitable for certain applications requiring high performance.
The max charging current is 24A.
Get a Quote
Inquiry for 12v 24ah battery
Attention:
- Avoid using the 12V lithium battery pack in high humidity or wet environments.
Keep the power bank intact; refrain from altering or disassembling it.
Never dispose of the 12V 24Ah battery in fire or water.
Do not invert the polarity of the battery pack.
