12V LFP Battery MANUFACTURER
12V 20Ah Deep Cycle Battery

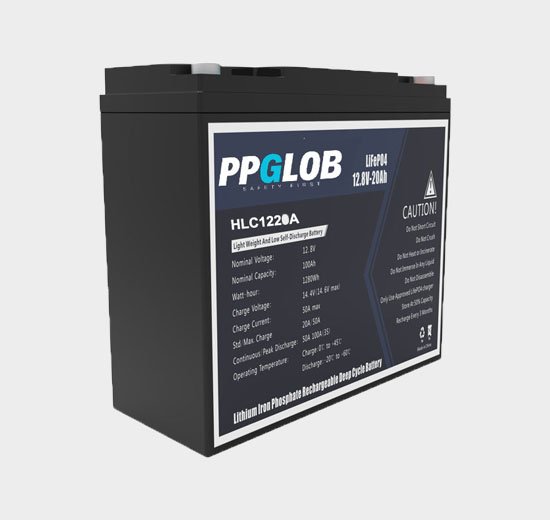

The PPGlob Power Lithium Iron Phosphate (LiFePO4) Battery Model PPG-1220 stands as an advanced 12V 20Ah battery solution
12V 20Ah battery for scooter
- Rated Voltage(V): 12.8
- Rated Capacity(Ah): 20
- Rated power(Wh): 256
- Max charge voltage(V): 14.6
- Max charge current: 20A
- Max contine current: 30A
- Peak discharge current(≦10S): 60A
- Specs(±2mm): 181*77*167mm
- Lifespan: >6000
The PPG-1220 is the introductory model in PPGlob Power’s robust 12V battery series, tailored for stationary applications and high-power portable electronics with increased capacity and output demands. Equipped with an integrated PCM (protection circuit module), it ensures internal cell balancing, comprehensive protection, and integrated charging functionality, all without generating EMI/RFI interference. This unit comes with a 110VAC/220 VAC AC-to-DC charger delivering 4A through a DC plug. It’s crucial to charge this battery using a LiFePO4 compatible charger, not an SLA charger.
The label may indicate a maximum continuous rating of 1C or 2C peak, with the de-rating to 1C aimed at ensuring longevity with over 6,000 cycles. Despite this, the battery reliably delivers 23 Amps for ham radio equipment with a 20% transmit and 80% receive duty cycle. Continuous operation at a 2C discharge slightly reduces cycle life to approximately 1,800 to 2,000 cycles.
| Nominal Voltage: | 12.8V | Nominal Capacity: | 20Ah |
|---|---|---|---|
| Nominal Energy: | 256Wh | Max Charging Voltage: | 14.6V |
| Max Charging Current: | 20A | Float Charging Voltage: | 13.6~13.8V |
| Continue Discharge Current: | 30A max | Peak Discharge Current: | 60A |
| Max Load Power: | 300W | Discharge Cut-off Voltage: | 10.8V |
| Charge Temperature: | 0~+50℃ | Discharge Temperature: | -20~+60℃ |
| Work Humidity: | <95%R.H | Lifespan(25℃, 0.5C, 100% DOD) | >6000 |
| Battery Cell Combination: | 26800-4S4P | Terminal: | F13(M5) |
| Waterproof Class: | IP65 | 12.8V 20Ah Battery Size: | 181*77*167mm |
| Weight: | 2.1Kg | Certification: | UN38.3/MSDS |
Application for 12V 20Ah Lifepo4 Battery
Lithium iron phosphate battery is a replacement for lead-acid batteries, which can be used in energy storage and power fields. They are fish finder, lifepo4 battery replace lead acid, electric vehicle, electirc scooter, solar lighting, RV etc.
FAQ
Frequently Ask Questions
The mostly asked questions about 12V 20Ah lithium ion battery.
It can operate LED lights, camping gear, small fans, portable electronics, fish finders, and lightweight devices efficiently.
A 12V 20Ah battery provides 240 watt-hours. Its longevity depends on the device's consumption rate. Lower consumption ensures longer battery life.
A 12V 20Ah battery can power various devices and equipment, depending on their power requirements and usage duration. Common applications include small electronic devices, LED lights, portable fans, radios, small appliances, and backup power systems for camping, RVs, boats, and motorcycles. Additionally, it can be used for electric scooters, wheelchairs, and golf carts, among other applications.
To create a 12V 20Ah battery, approximately 40 18650 cells (3.7V, 5Ah each) are needed, arranged in series and parallel configurations.
No, lithium-ion and LiFePO4 batteries differ in chemistry. LiFePO4 offers longer lifespan and safety, while lithium-ion has higher energy density. Different applications and characteristics.
A 12V 20Ah battery functions by storing electrical energy in its cells, which can then be discharged to power various devices or equipment. When connected to a compatible device, the battery provides the necessary voltage and current to operate it. The capacity of the battery (20Ah) determines how long it can supply power before needing to be recharged. Charging is typically done using a compatible charger, which replenishes the battery's energy stores, allowing it to be used again.
Get a Quote
Packing & Delivery:
Packaging Options:
- Carton boxes on pallet containers.
- Customized packaging is also available to meet specific customer requirements.
Shipping:
- For new samples, the shipping time is 5-10 working days, while mass production requires 15-20 working days from the receipt of deposit and sample confirmation.
- Sample orders are typically shipped via DHL, UPS, FedEx, or TNT, while mass orders are recommended for sea shipment. We offer forwarder services upon request.
